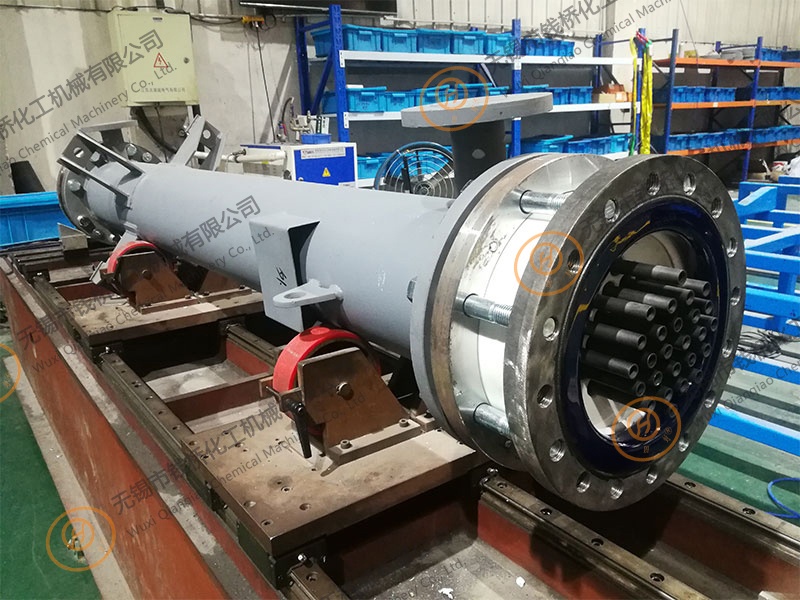

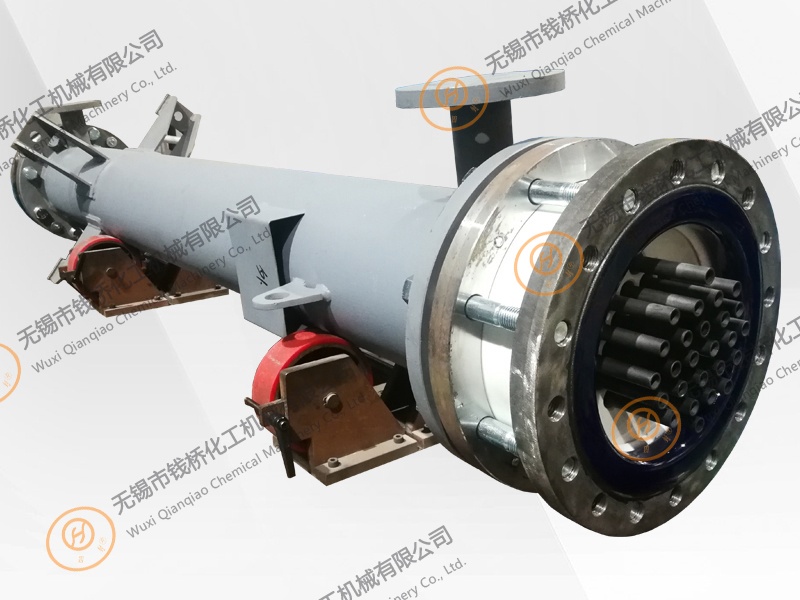

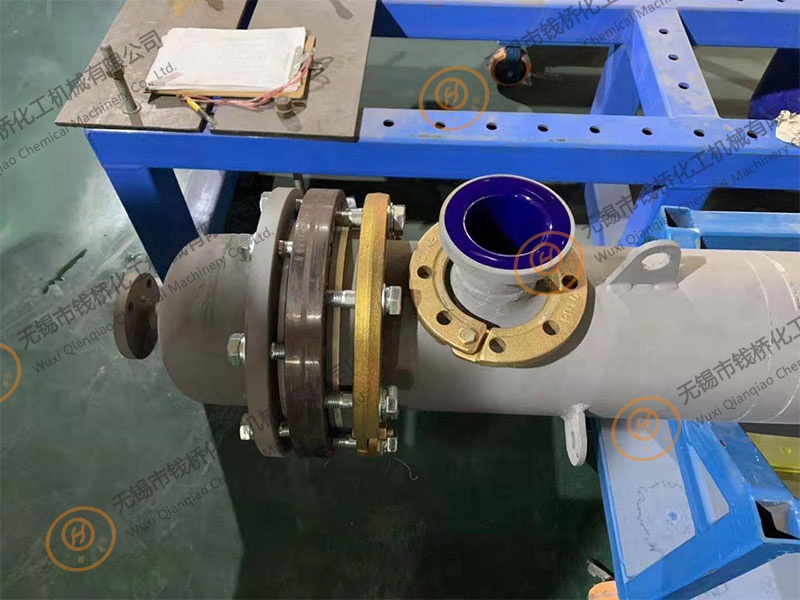

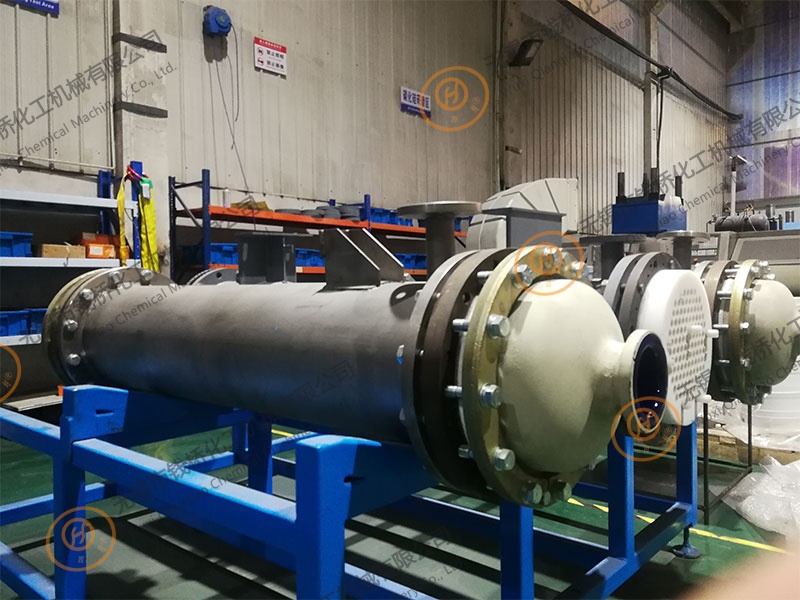

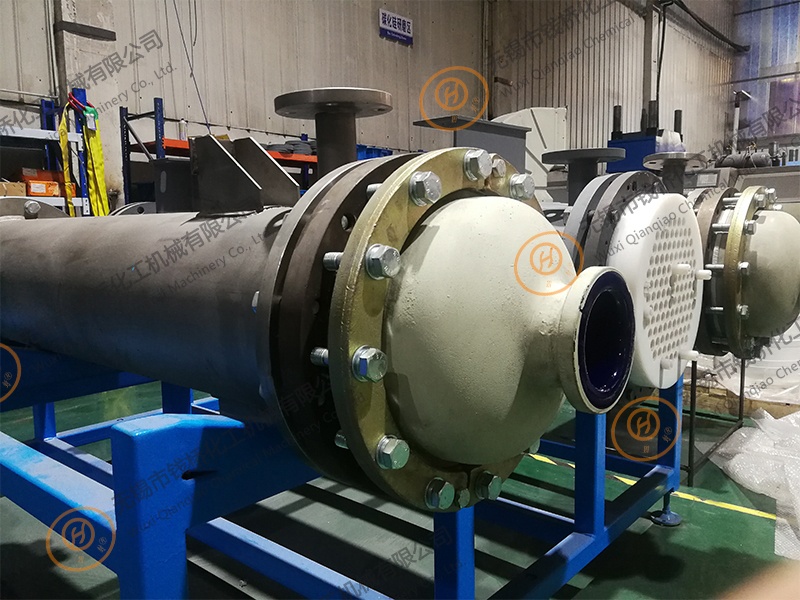

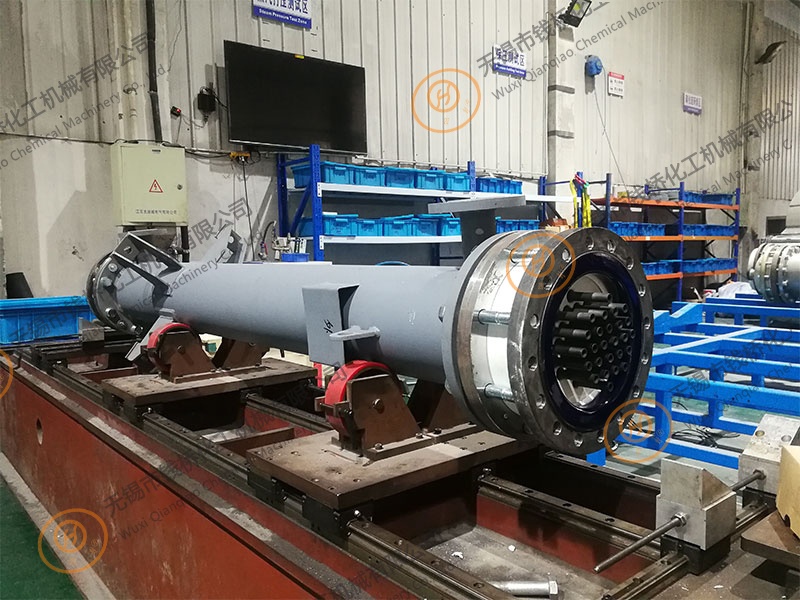

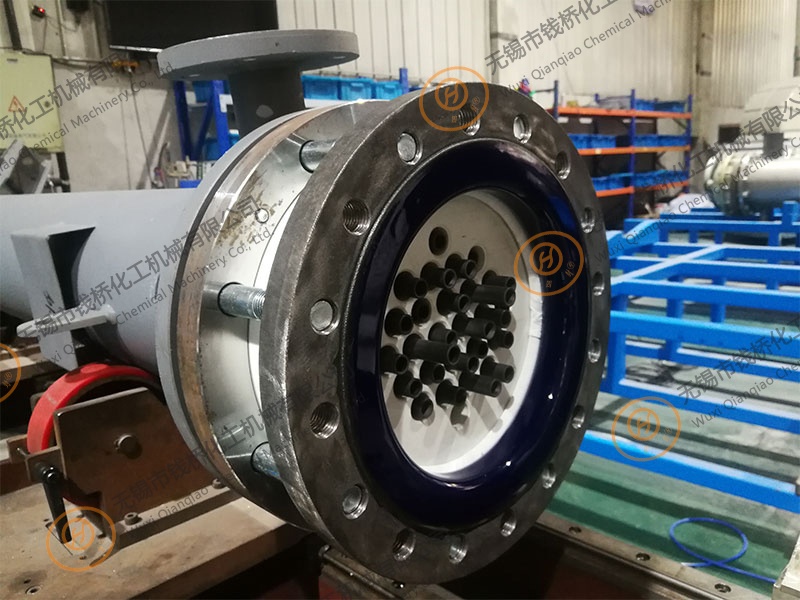

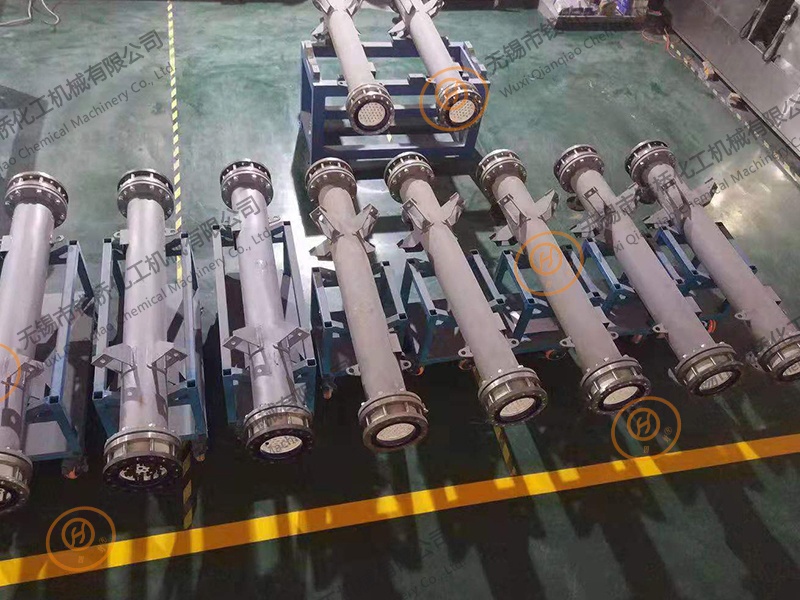

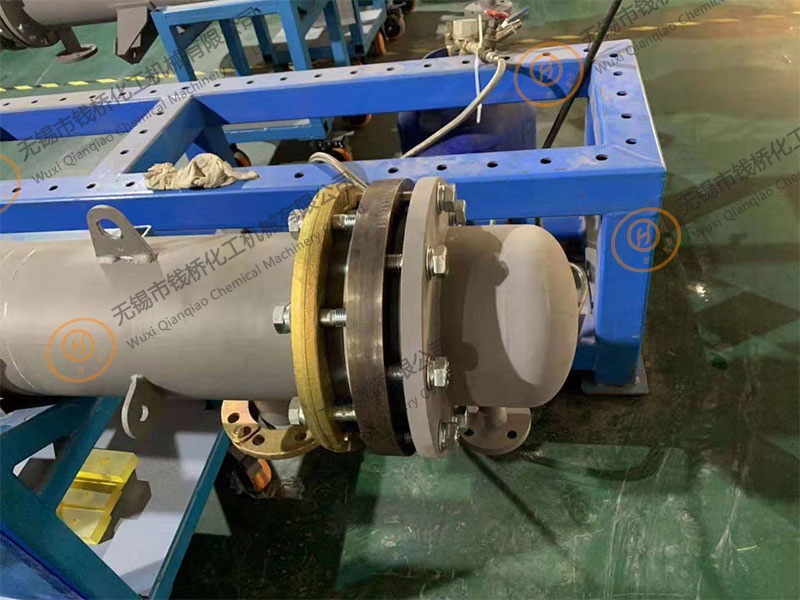

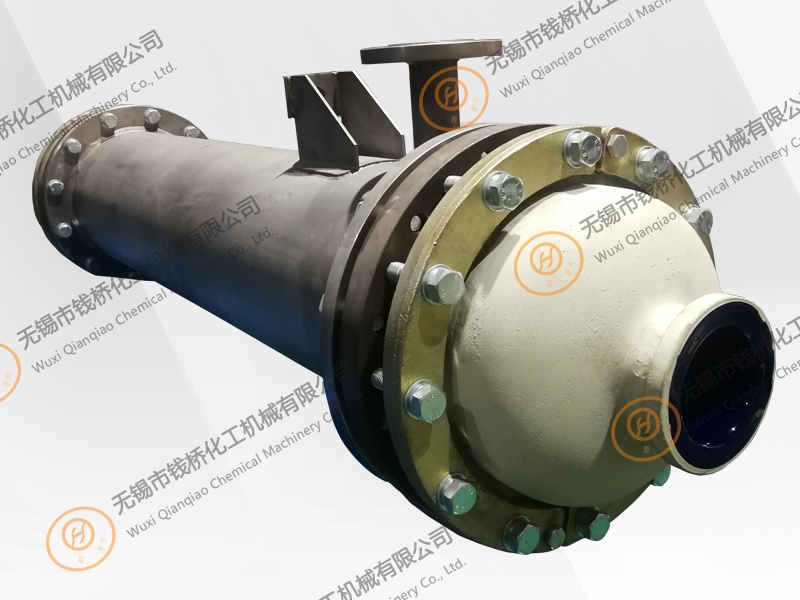

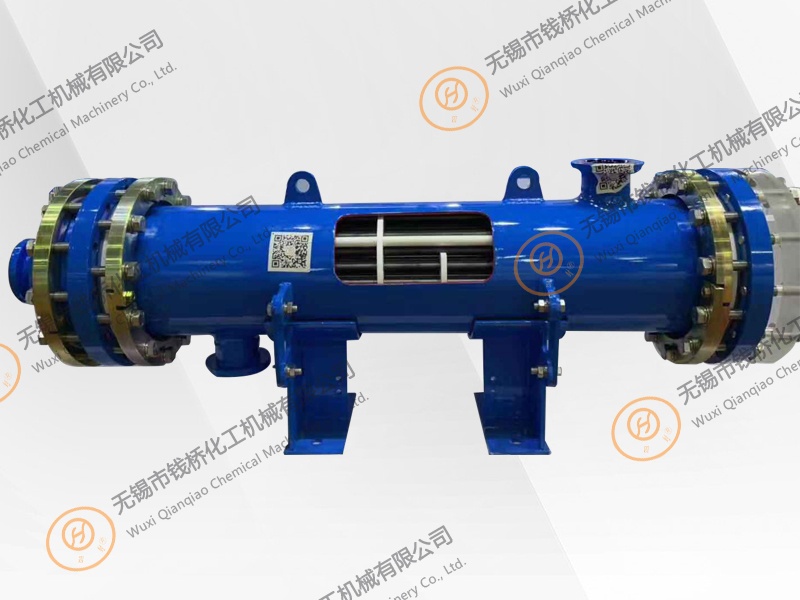

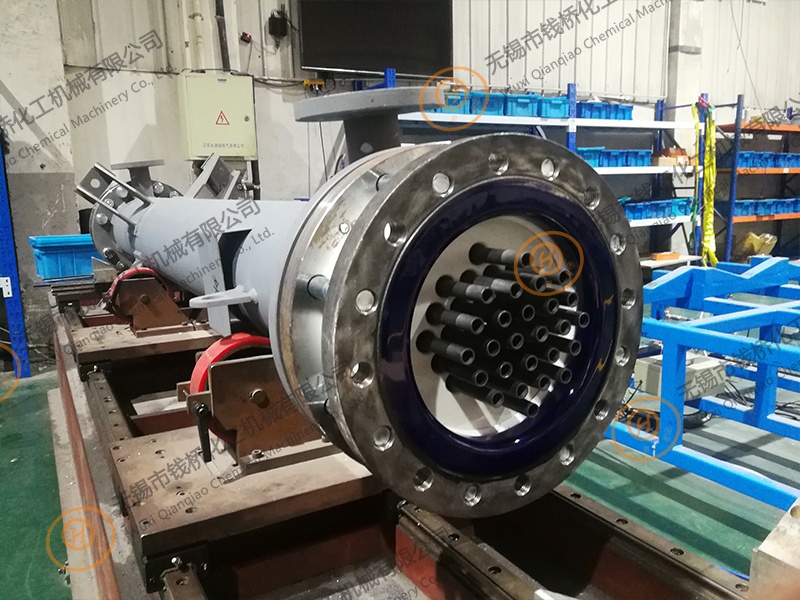

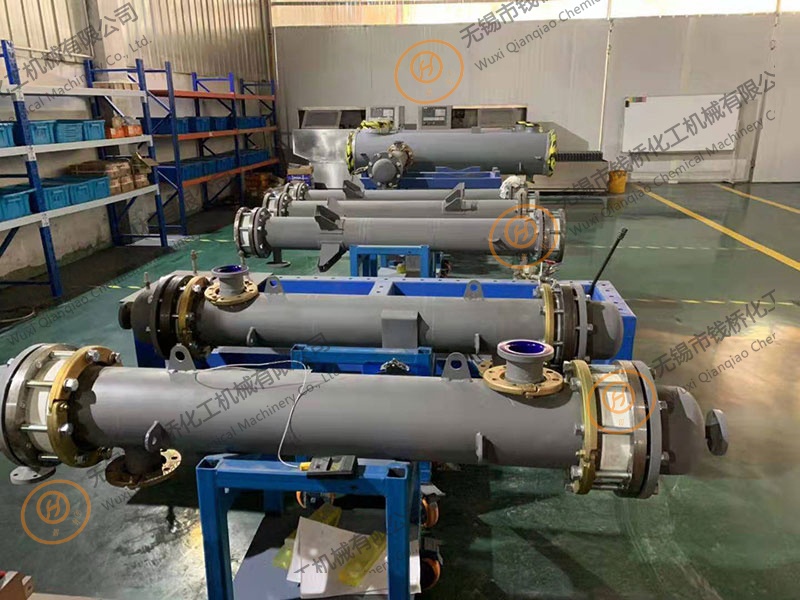

Reinforced type [steel lined F4 or steel lined PFA] SIC heat exchange

Reinforced type [steel lined F4 or steel lined PFA] SIC heat exchange ● Test each heat exchange tube under pressure of 185 Bar before installation ● Heat exchanger housing diameter range from DN100 to DN600 ● The standard length of the heat exchange tu
ONLINE

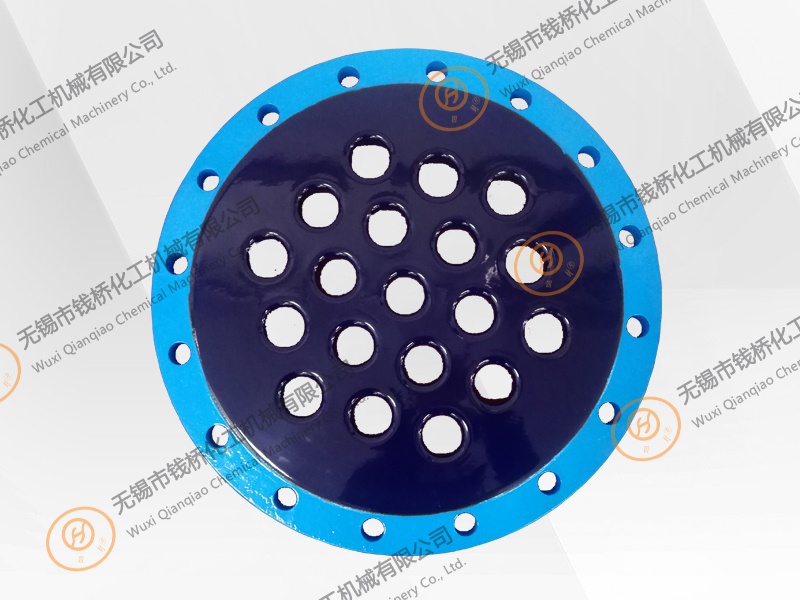

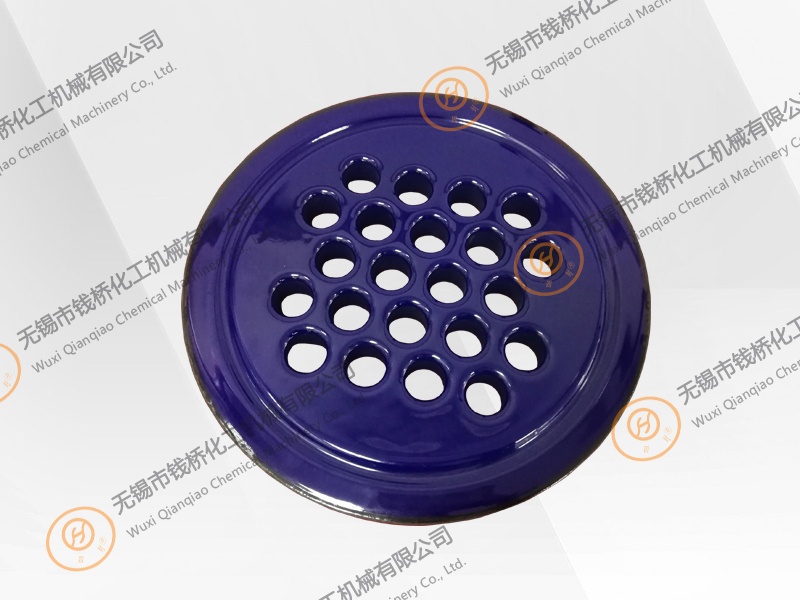

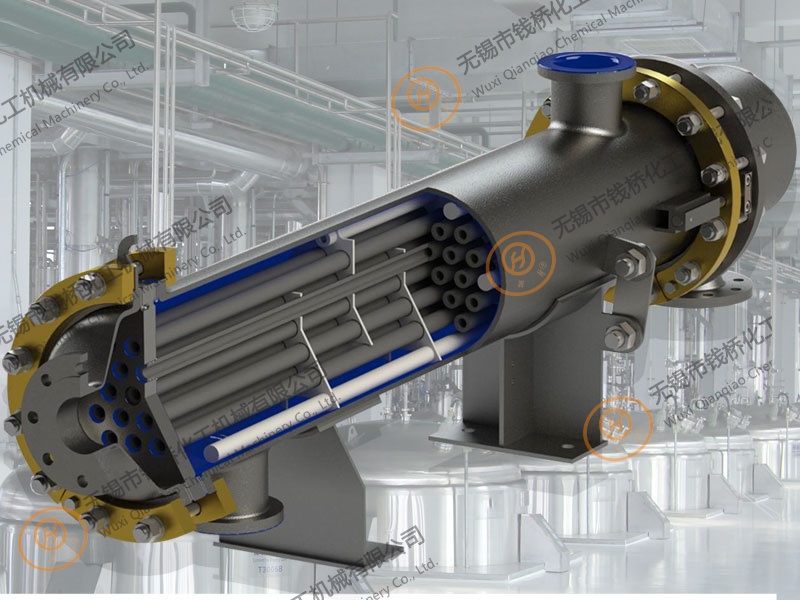

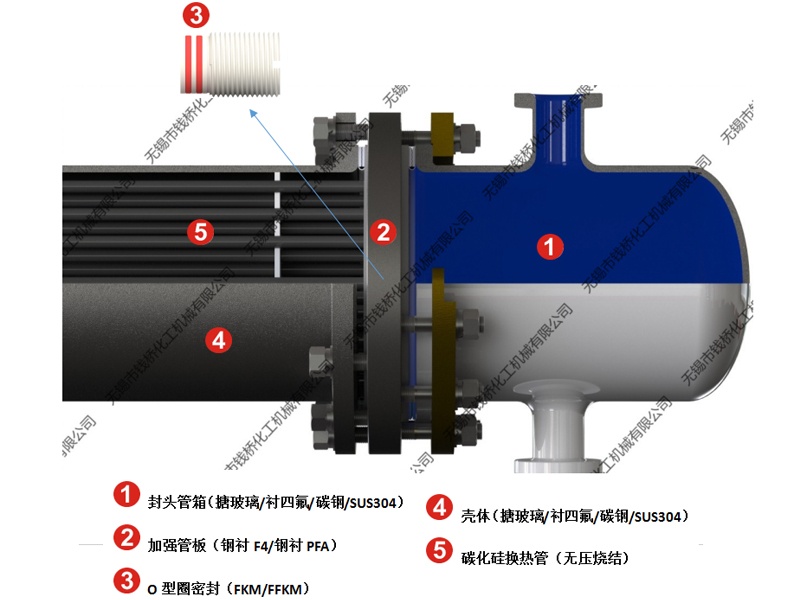

SIC tube heat exchanger, consisting of corrosion-resistant tube sheets and silicon carbide tubes, is the best solution for the most demanding corrosive conditions.

SIC tubular heat exchangers use heat-resistant tubes made of corrosion-resistant silicon carbide that are ideal for heating, cooling and condensing chemically corrosive process media. Typical applications include: bromine, sulfuric acid, hydrofluoric acid, nitric acid, hydrochloric acid and other acids; bases; halogenated compounds; salt solutions and organic compounds.

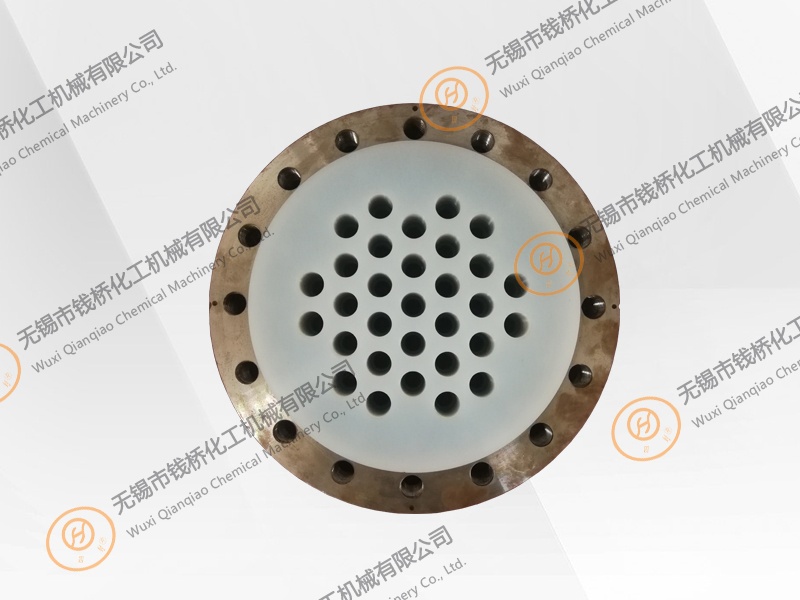

Reinforced type [steel lined F4 or steel lined PFA] SIC heat exchange

● Test each heat exchange tube under pressure of 185 Bar before installation
● Heat exchanger housing diameter range from DN100 to DN600
● The standard length of the heat exchange tube is 1000 to 3000mm
● Heat exchange area is 1 to 40 square
● Heat exchange tube diameter is 14mm and 19mm
● Horizontal or vertical installation
● steel lining F4 Applicable temperature range -19℃ to 120℃
● steel lining PFA Applicable temperature range -19℃ to 120℃
● Applicable pressure range -0.1Mpa to 0.6Mpa
● Comply with CE, ATEX, FDA

Reinforced type [steel lined F4 or steel lined PFA] SIC heat exchange

Red column must be filled Click to download

Design requests of SIC

Device number





Jacket

in side of heat exchanger

Fluid name / component



Total flow

kg/h

Gas flow

kg/h

Liquid flow

kg/h

Non condensable material flow

kg/h

Tempreture ( In / Out)

°C

Freezing point / Boiling point

°C

Density

kg/m3

Viscosity

cP

Gas molecular weigh

g/mol

Molecular weight of non condensates

g/mol

Specific heat

cal/g/k

Thermal conductivity

kcal/m/K/h

latent heat

kcal/kg

Inlet pressure (absolute pressure)

Mpa

Current Speed

m/s

Pressure drop

bar

Fouling coefficient

kcal/h/m2/°C

Heat exchange capacity

kcal/h

Heat transfer coefficient(clean / dirty / service side)

kcal/h/m2/°C

Corrected logarithmic mean temperature difference

°C

Heat exchange area (required / provided)

m2

Equipment selection data

Design temperature

°C

Design pressure

barg

Test pressure

barg

Process number



Inlet pipe diameter

mm

Outlet pipe diameter

mm

Material



Weight (empty / full water)

kg

Installation method



SIC tubular heat exchangers use heat-resistant tubes made of corrosion-resistant silicon carbide that are ideal for heating, cooling and condensing chemically corrosive process media. Typical applications include: bromine, sulfuric acid, hydrofluoric acid, nitric acid, hydrochloric acid and other acids; bases; halogenated compounds; salt solutions and organic compounds.
